CPD.06.600 Advanced Research Grade Compound Biological Microscope

Product Description

Description

CPD.06.600, is an advanced laboratory biological microscope adopting Infinity Corrected Optical System. It has a standard magnification range of 40X-1000X (1500X can be reached with optional 15X eyepiece). It comes with a binocular head, a pair of high eye-point wide field plan eyepieces, five infinity plan achromatic objectives, a double layer mechanical stage, coaxial coarse and fine focusing system, ABBE condenser, and illumination with imported halogen lamp. This microscope is a professional microscope for medical treatment, laboratories and scientific research.

Features

  • Adopting color corrected infinity optical system
  • Equipped with five infinity plan achromatic objectives
  • Five wide-field magnification power: 40X to 1000X
  • Coaxial coarse and fine focus system

Specification

Item Specification 600B 600T
Optical System Infinite Optical System ● ●
Eyepiece Extra Wide Field Eyepiece EW10×/22mm ● ●
Wide Field Eyepiece WF15×/16 ○ ○
Wide Field Eyepiece WF20×/12 ○ ○
Viewing Head Seidentopf Binocular Viewing Head, Inclined at 30°, 360° Rotatable, Interpupillary 47-78mm, Anti-Fungus, Tube Diameter 30mm ●
Seidentopf Trinocular Viewing Head, Inclined at 30°, 360° Rotatable, Interpupillary 47-78mm, Splitting ratio 5:5, Anti-Fungus, Tube Diameter 30mm   ●
Seidentopf Binocular Viewing Head with Built-in 5.0MP Digital Camera, HDMI and Wifi output interface, Inclined at 30°, 360° Rotatable, Interpupillary 47-78mm, Anti-Fungus, Tube Diameter 30mm ○ ○
Objective













NIS45 Infinite Plan Achromatic Objective 4× (N.A.:0.10, W.D.:20.6mm) ● ●
NIS45 Infinite Plan Achromatic Objective 10× (N.A.:0.25, W.D.:18.0mm), ● ●
NIS45 Infinite Plan Achromatic Objective 40× (N.A.:0.65, W.D.:1.5mm), ● ●
NIS45 Infinite Plan Achromatic Objective 100× (Oil, N.A.:1.25, W.D.:0.3mm) ● ●
NIS45 Infinite Plan Achromatic Objective 20× (N.A.:0.40, W.D.:6.4mm) ○ ○
NIS45 Infinite Plan Achromatic Objective 60× (N.A.:0.80, W.D.:0.3mm) ○ ○
NIS45 Infinite Plan Phase Contrast Achromatic Objective 10×, 20×, 40×, 100× ○ ○
Nosepiece Backward Quintuple Nosepiece ● ●
Stage Rackless stage, Size 230×150mm, Moving Range 78×54mm ● ●
Condenser Inserted Abbe Condenser NA1.25(Including Empty Plate) ● ●
Bright Field-Phase Contrast Plate (4x-100x Universal) ○ ○
Bright Field-Dark Field Plate ○ ○
Focusing Coaxial coarse and fine adjustment, Coarse stroke 37.7mm per rotation, Fine stroke 0.2mm per rotation, Fine division 0.002mm, Moving range 30mm ● ●
Illumination 1W LED illumination, Brightness Adjustable ● ●
Fluorescent Attachment 3W LED, Two Filter Cubes (B, B1, G, U, V, R, Auramine O can be combined), Fly-eye Lens Illumination ○ ○
Other Accessories 1× C-mount adapter ○ ○
0.5× C-mount adapter ○ ○
Simple Polarization Set ○ ○
Digital Camera ○ ○
Filter Green ● ●
Blue, Yellow, Red ○ ○
Package 1pc/carton, Carton size: 48cm*33cm*60cm, Net/Gross Weight: 10.5kg/12.5kg ● ●
Note: ●Standard Outfit, ○Optional

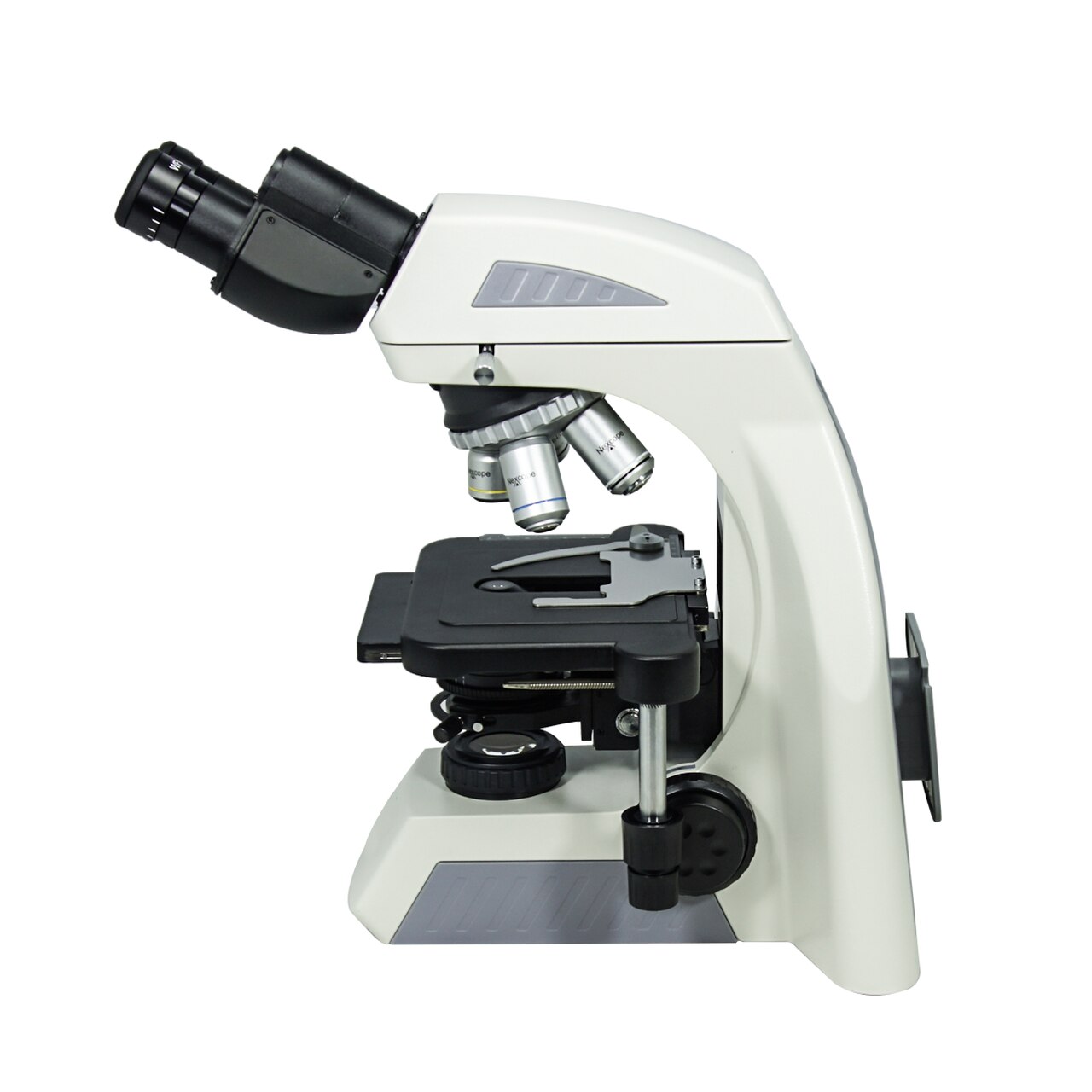

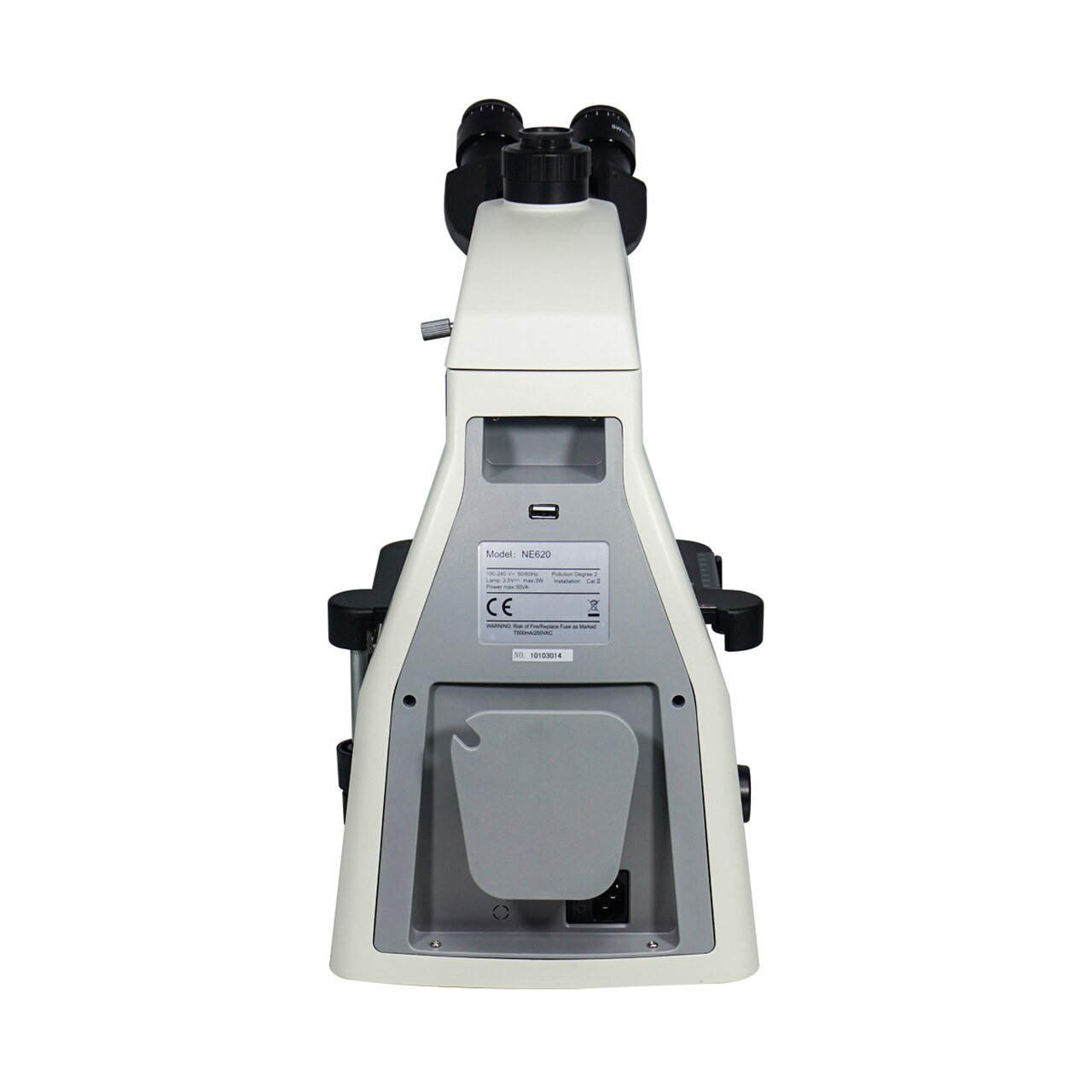

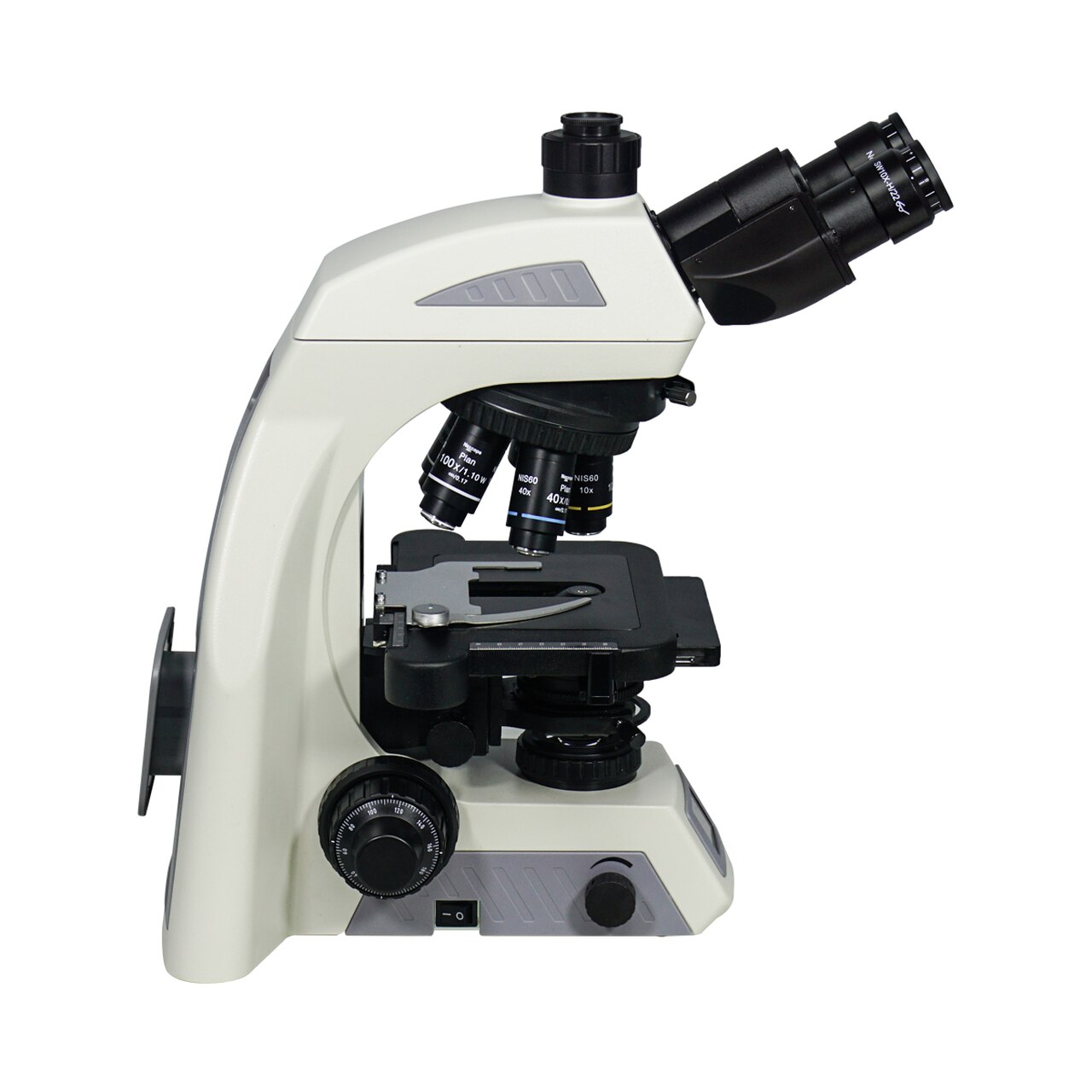

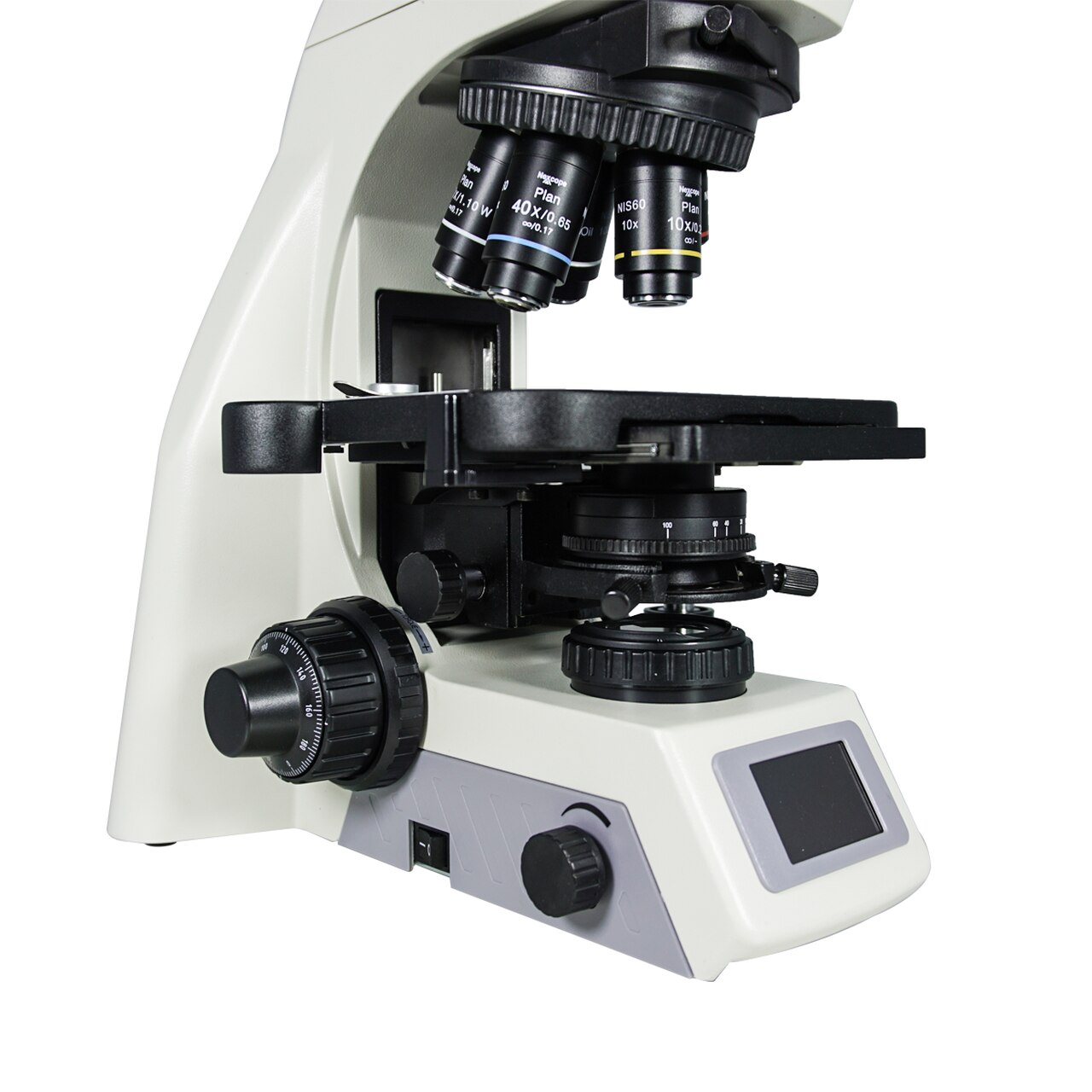

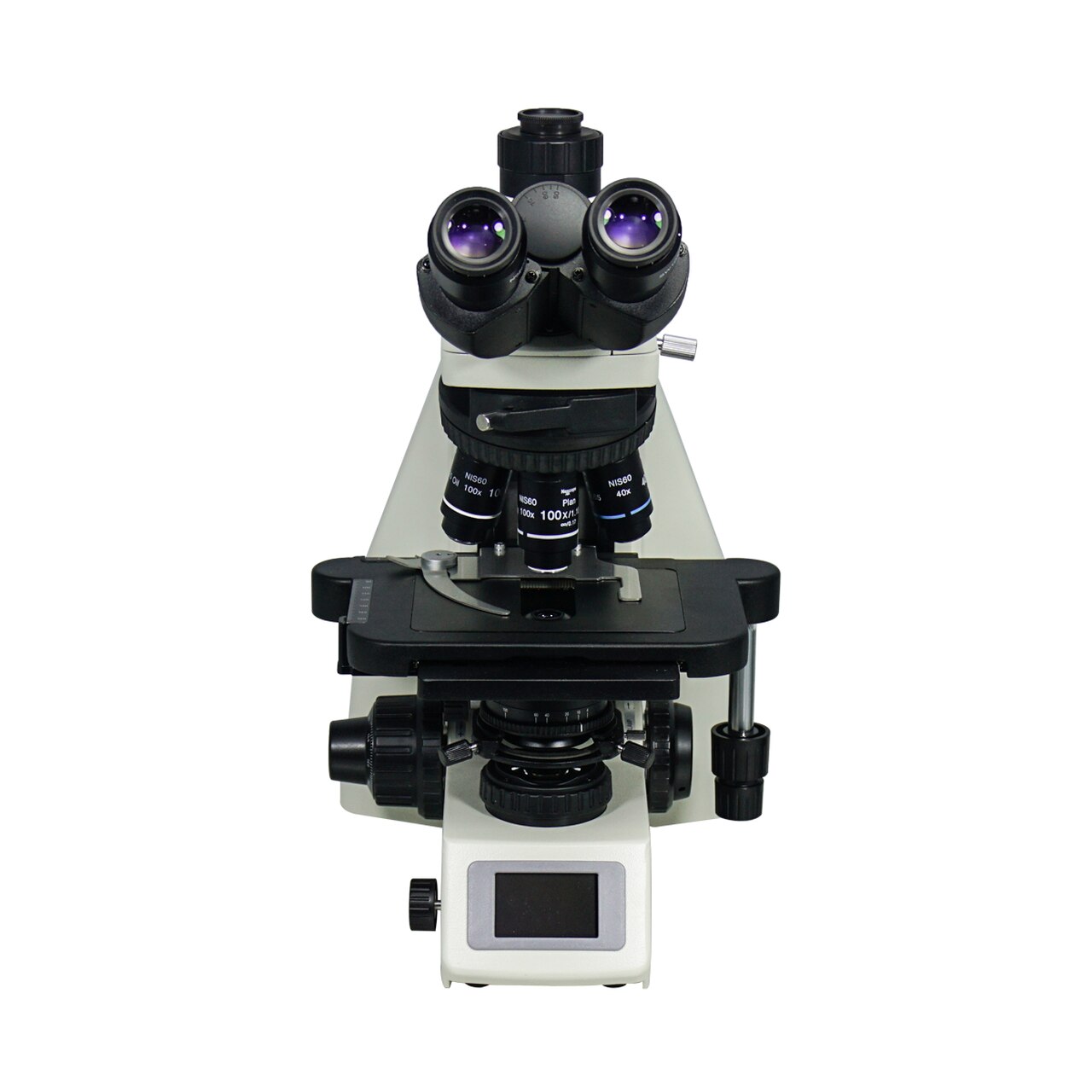

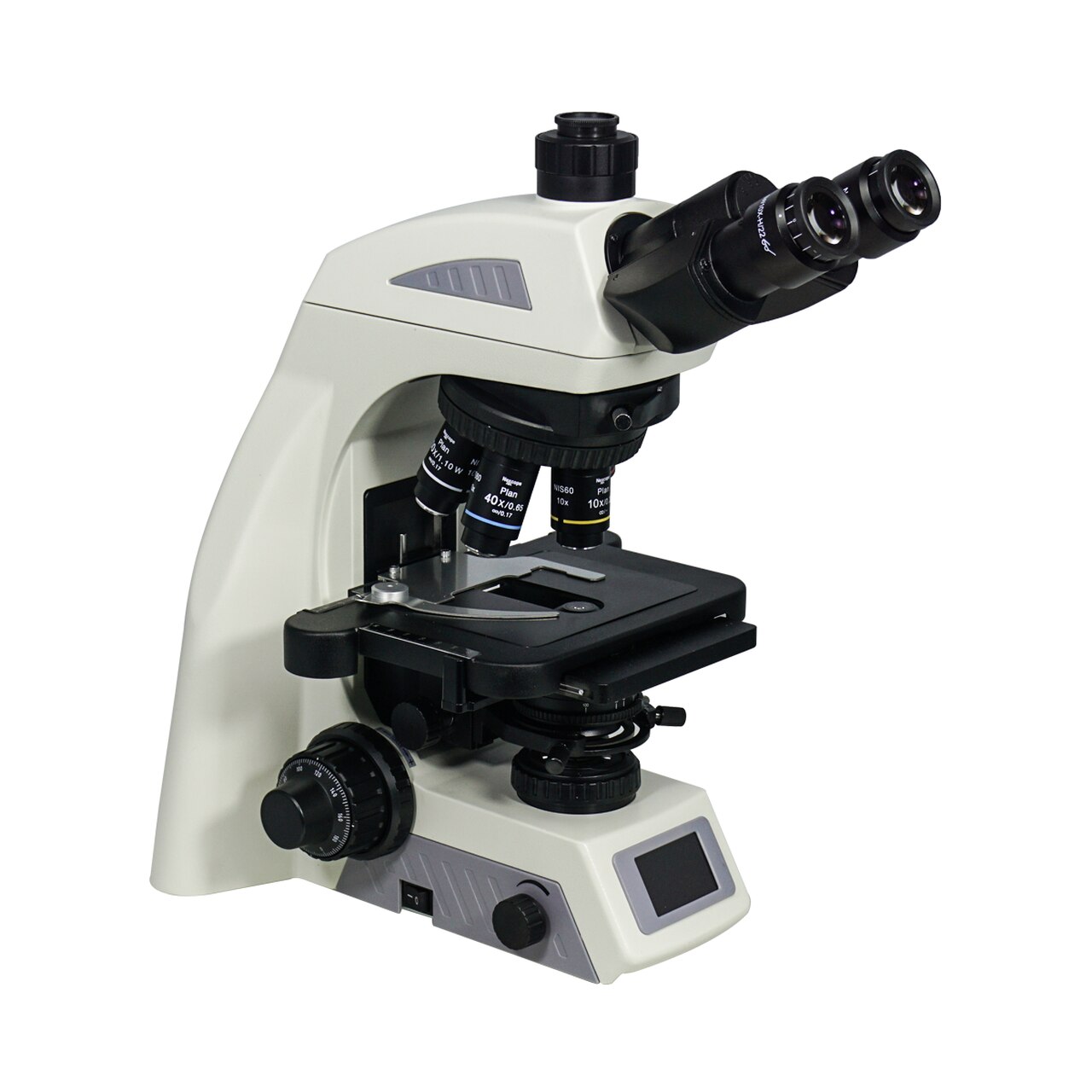

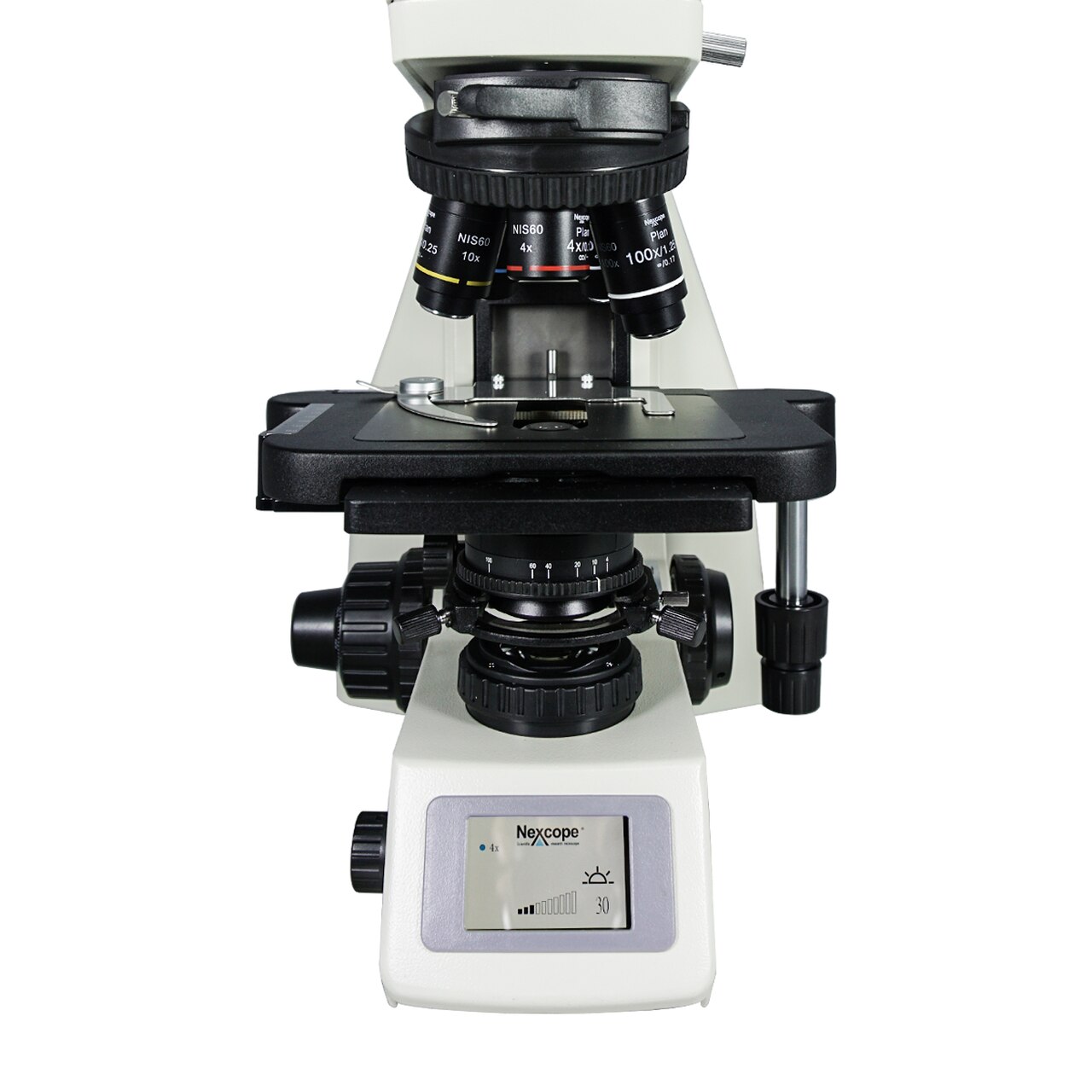

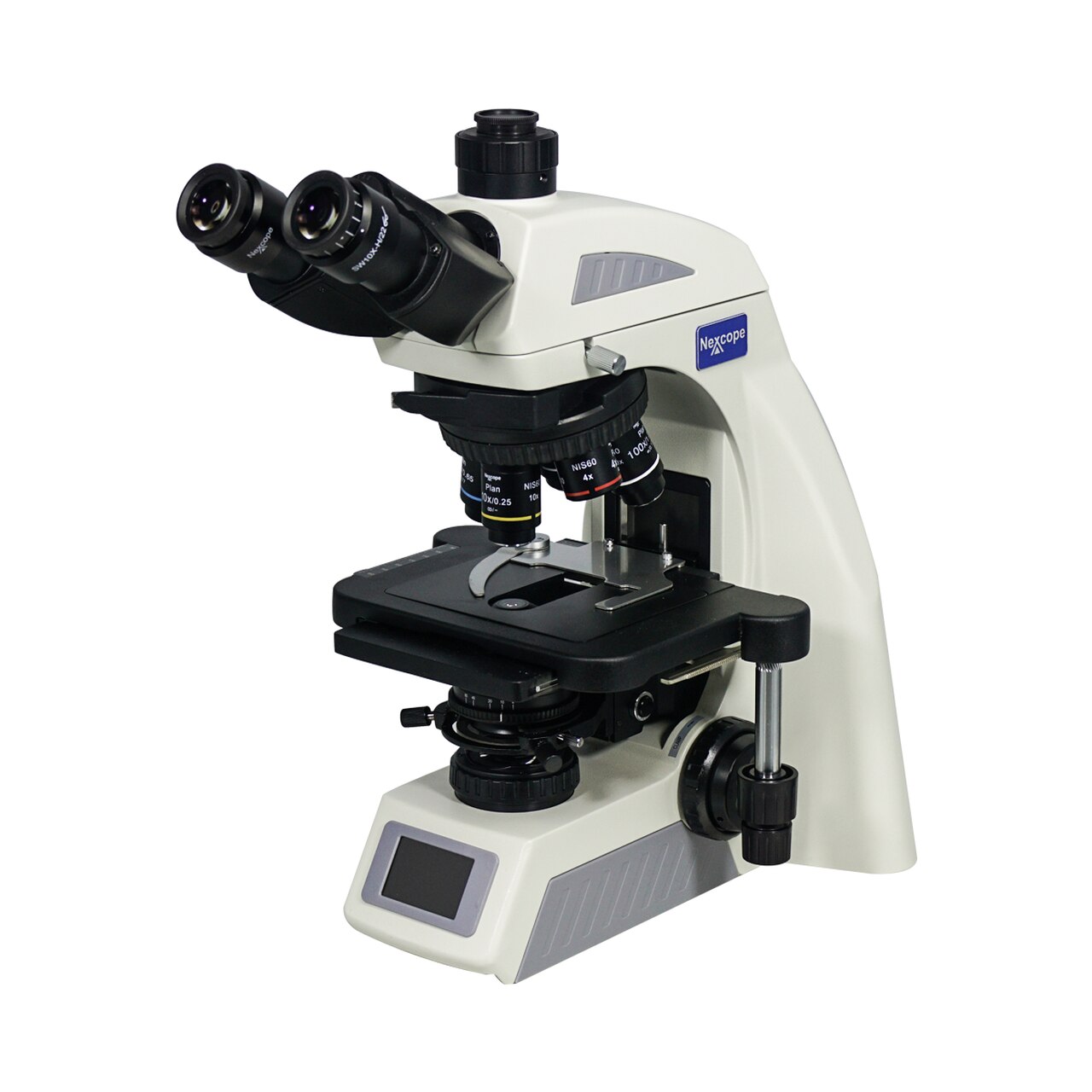

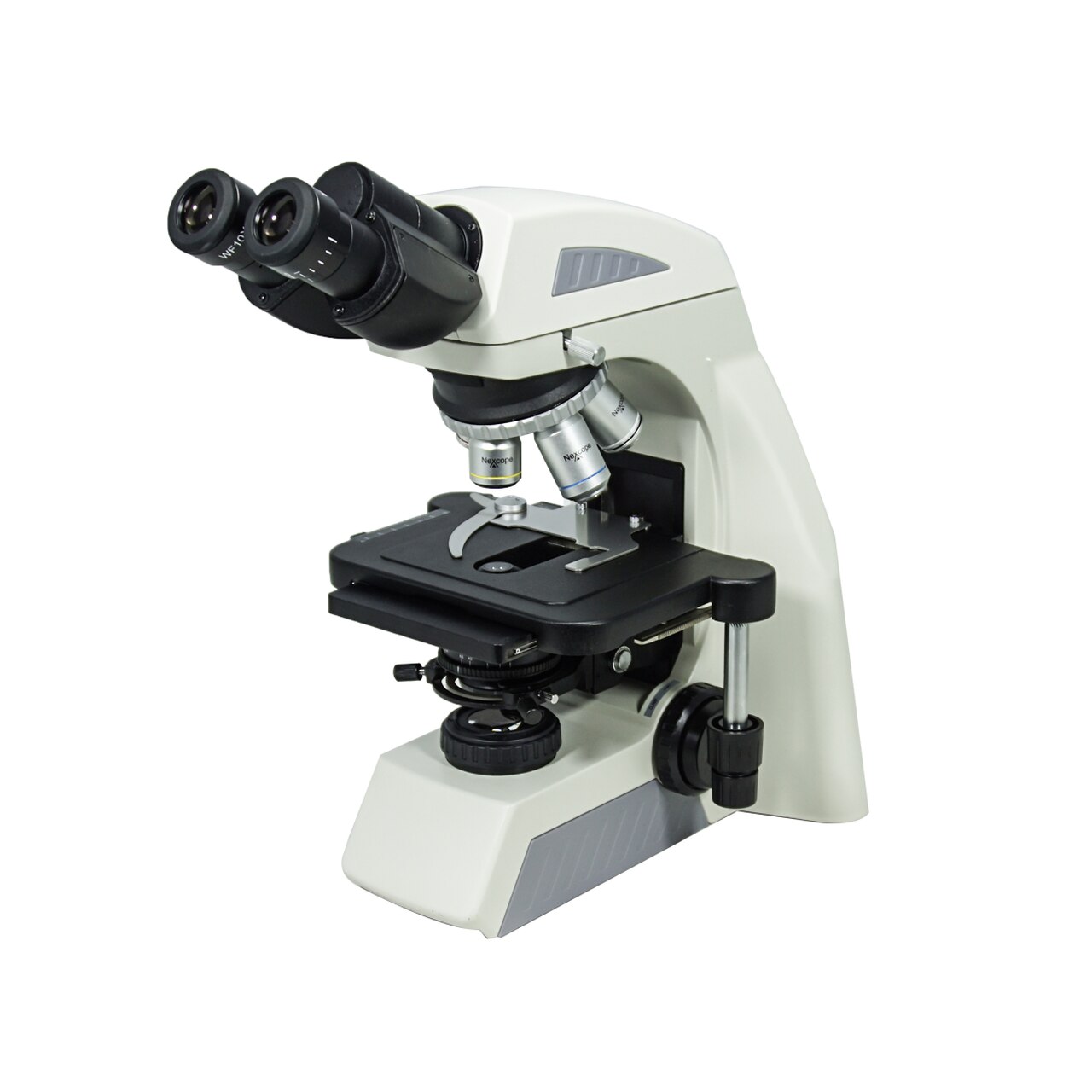

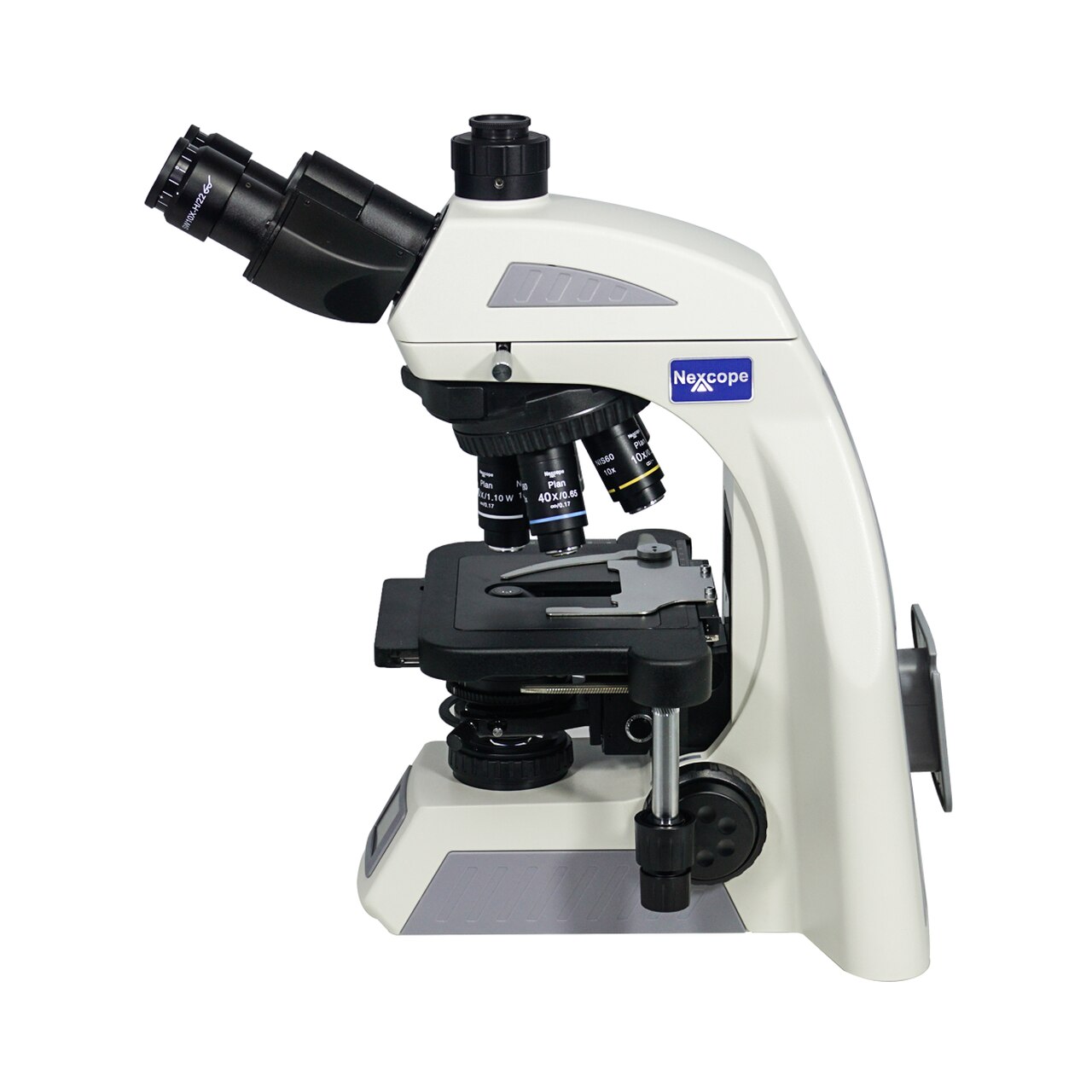

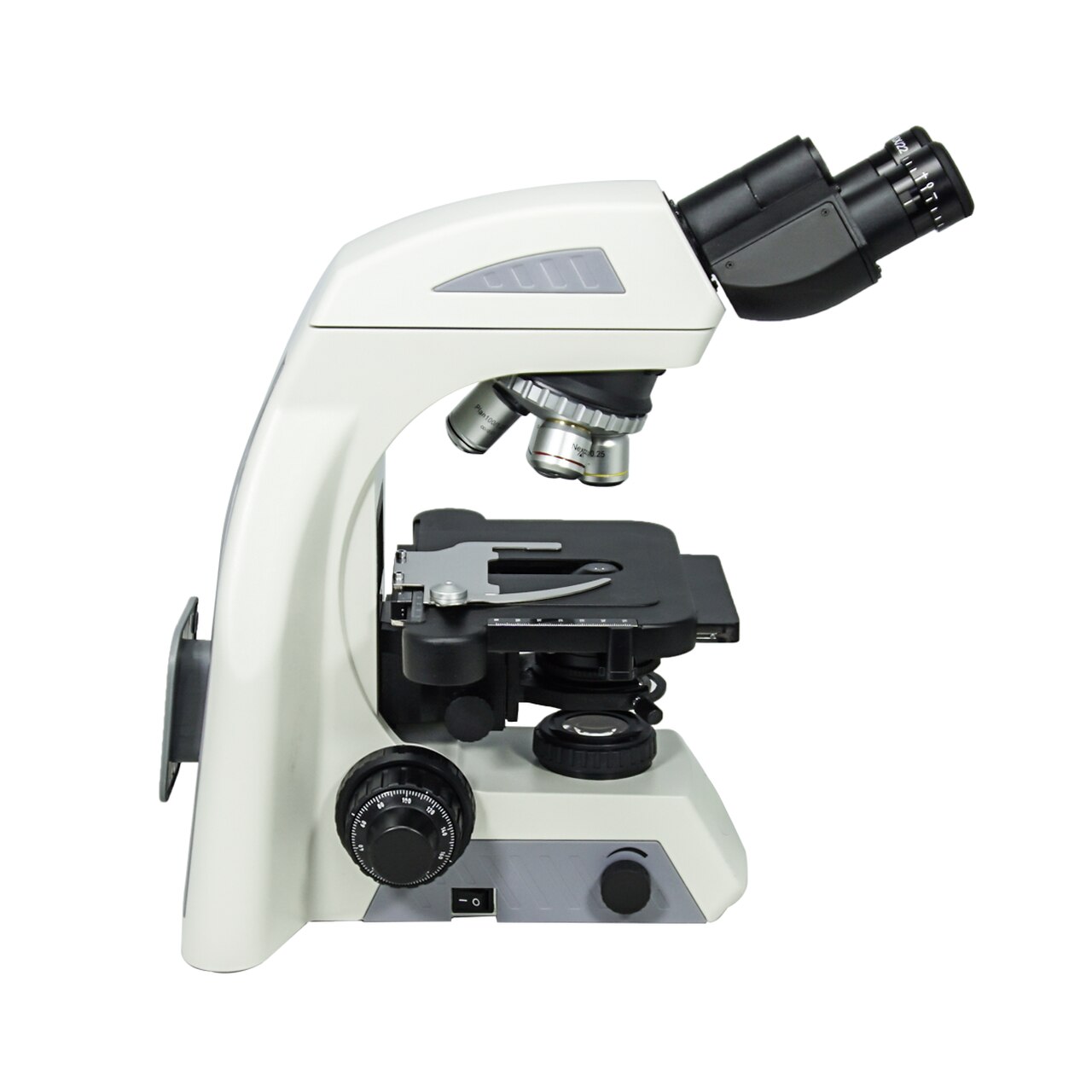

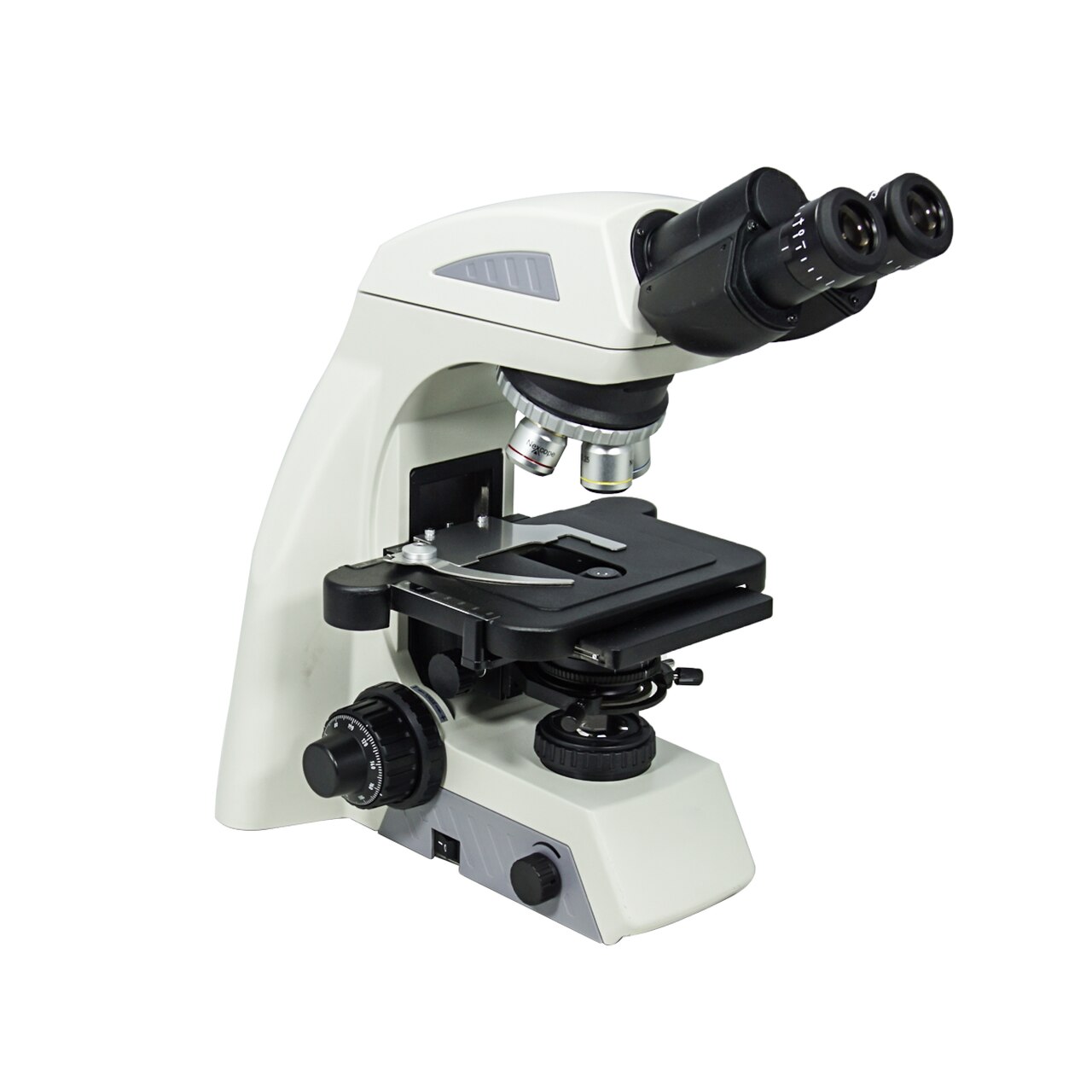

Product Show
